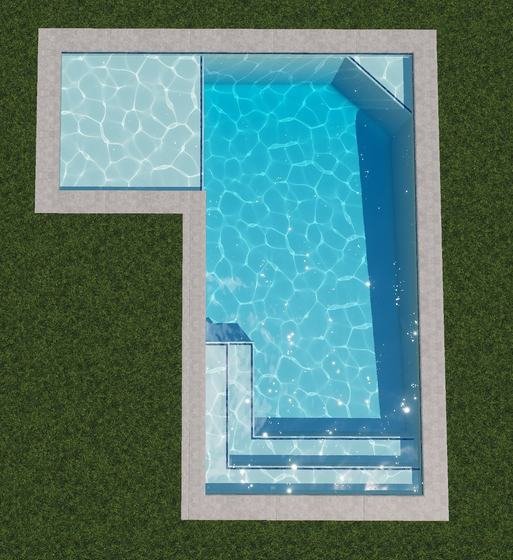

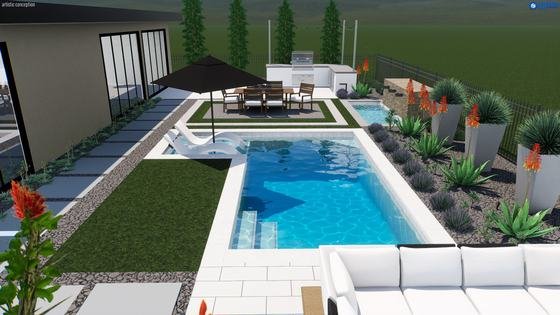

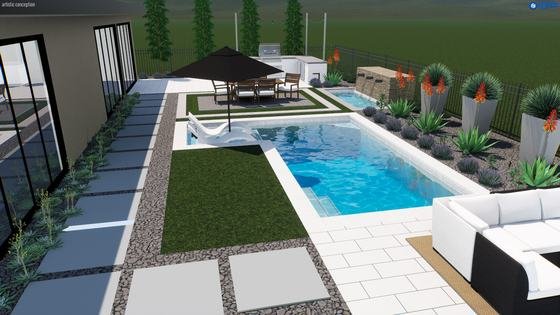

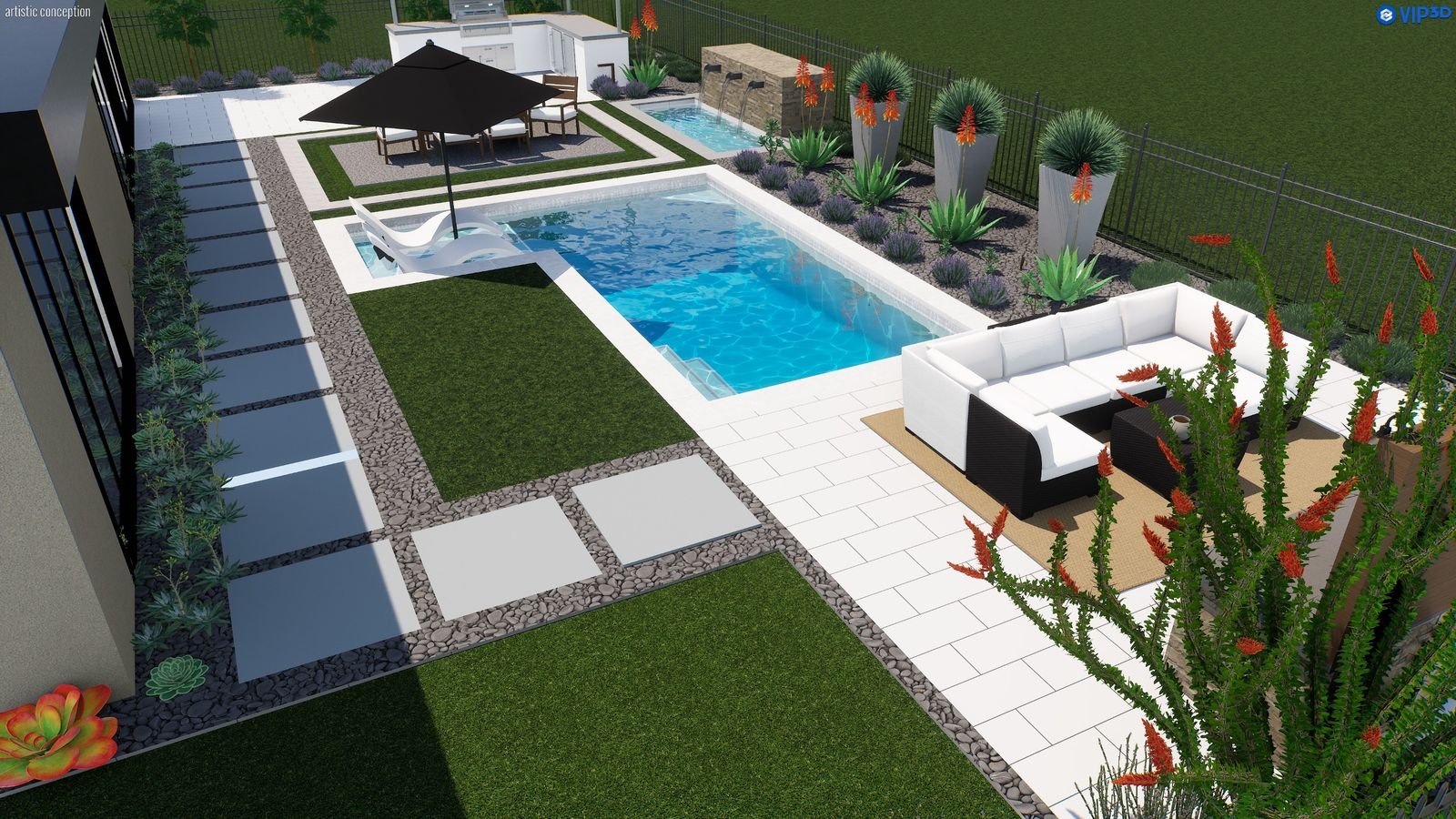

1 / 43D design views and the 2D pool plan. Tap a photo to enlarge.
Kensington Pool 19′ × 23′
Pool · 19′ × 23′
Clean, modern and timeless — upscale without feeling cold or trendy. Kensington focuses on strong lines, balanced layouts and materials that feel warm and inviting rather than flashy, with every element placed with purpose so the backyard feels calm, open and easy to enjoy.
What’s in the plan set
- T-1 Title sheet with general notes
- PC-1 · PC-2 Construction sheets
- PP-1 Plumbing & lighting
- PM-1 · PM-2 Materials sheets
- PS-1 Pool safety plan
7 sheets · delivered as one PDF
Buy this plan — $395Secure checkout by Stripe. After payment, your download link is emailed to you. Lost it? Email my links again.
144 subscriber? This plan can be your included monthly download — choose it in the plan library.
This plan is a graphic reference, not a site-specific or permit-approved document. Verify site conditions and local codes, and consult a structural engineer where required for your jurisdiction. Construction, installation, materials and furnishings are not included.
